configurasi ipv6 di 8 router

on


A.Configurasi ipv6 di router

Sebelum menghubungkan router dengan kabel DCE.Setting dulu routernya

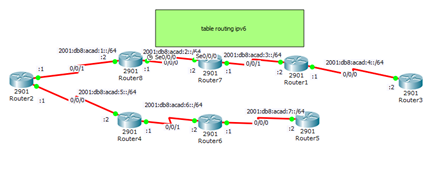

1.Topilogi table routing




2.Configurasi ipv6 di router
Router>en
Router#conf
Router#configure t
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#inter
Router(config)#interface se
Router(config)#interface serial 0/0/1
Router(config-if)#ipv6 address 2001:db8:acad:1::1/64
Router(config-if)#clock rate 64000
Router(config-if)#no shutdown
Lakukan langkah diatas hanya diganti serrial dan ipv6 nya (text warna kuning)


3.Configurasi Ip route ipv6

Router#configure terminal
Mode terminal
Router(config)#interface serial 0/0/1
Serial (sampai 0/0/1 dan  0/0/0)
Router(config-if)#ipv6 address 2001:db8:acad:1::1/64
Network address :1:(1-7)
Gateway  :1(1-2)
Router(config-if)#clock rate 64000

Router(config-if)#no shutdown
Supaya router up agar tidak mati



                                                                        IP ROUTE
Destination address
Nework address dan gateway
2001:db8:acad:2::/64
2001:db8:acad:1::2
2001:db8:acad:3::/64
2001:db8:acad:1::2
2001:db8:acad:4::/64
2001:db8:acad:1::2
2001:db8:acad:5::/64
2001:db8:acad:1::2
2001:db8:acad:6::/64
2001:db8:acad:1::2
2001:db8:acad:7::/64
2001:db8:acad:1::2

a.      kekanan
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ipv6 route 2001:db8:acad:2::/64 2001:db8:acad:1::2
Router(config)#ipv6 route 2001:db8:acad:3::/64 2001:db8:acad:1::2
Router(config)#ipv6 route 2001:db8:acad:4::/64 2001:db8:acad:1::2

Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ipv6 route 2001:db8:acad:6::/64 2001:db8:acad:5::2
Router(config)#ipv6 route 2001:db8:acad:7::/64 2001:db8:acad:5::2
Router(config)#exit
b.      Kekiri
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ipv6 route 2001:db8:acad:3::/64 2001:db8:acad:4::1
Router(config)#ipv6 route 2001:db8:acad:2::/64 2001:db8:acad:4::1
Router(config)#ipv6 route 2001:db8:acad:1::/64 2001:db8:acad:4::1
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ipv6 route 2001:db8:acad:6::/64 2001:db8:acad:7::1
Router(config)#ipv6 route 2001:db8:acad:1::/64 2001:db8:acad:7::1

4. Ping ipv6
Router#ping 2001:db8:acad:4::1

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2001:db8:acad:4::1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/6/14 ms
